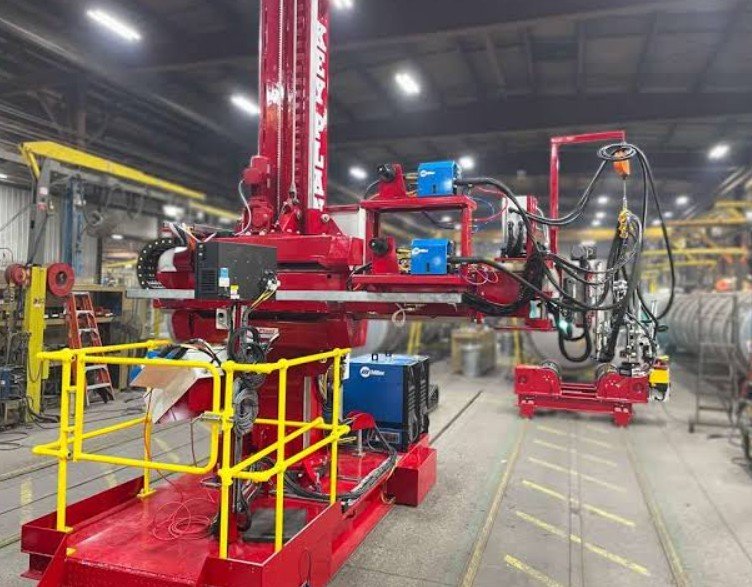

Specifying the Boom-End Load Envelope for Long-Seam Welding Manipulators

Long seams create an awkward purchasing trap. Buyers can see the required weld length, select a column-and-boom machine with a similar reach, and assume the decision is finished. That assumption fails. At maximum extension, the difficult question is what happens when the welding head, wire feeder, flux equipment, camera, cross-slide, hoses, cables, and any service platform are installed together. Any machine that reaches the seam but deflects, vibrates, or cannot carry the complete package has not solved the production problem.

Rather than use a single capacity number, evaluate a manipulator as a load envelope. Within that envelope sit boom reach, column lift, travel path, full mounted mass, cable management, workpiece motion, and the process to be run. This article gives a purchasing method for pressure-vessel, pipe, structural, and similar long-seam work. Deliberately, it avoids a generic productivity promise: the value of a manipulator comes from whether its real operating envelope fits the actual joint family.

Long seams fail at the end of the boom, not on the brochure

A column-and-boom manipulator moves the welding head; it does not normally turn the workpiece. That distinction matters because a buyer is specifying two linked systems. Under this arrangement, the boom positions and travels the torch. For cylindrical work, a rotator or positioner may have to present the vessel, pipe spool, or fabricated assembly to that torch. If either part of the arrangement is treated as an afterthought, the shop can end up with a well-built machine that cannot make the required seam safely or repeatably.

Aubrik describes its column-and-boom range as a configurable platform for SAW, MIG/MAG, and TIG work on tanks, pressure vessels, pipe spools, and wind-tower sections. Its published reference classes run from AM-CB-30 through AM-CB-60, with listed boom-end load bands from 150–500 kg through 800–2,000 kg and variable travel listed at 120–3,000 mm/min. Those figures are useful starting points, not a shortcut to a selection. Each candidate machine still has to be checked against the actual reach, lift, package mass, process, and workpiece route.

One common procurement error is comparing only the torch mass with the published boom-end load. Even a simple TIG torch may look light; a submerged-arc package can add a wire feeder, flux delivery and recovery hardware, sensors, cameras, cross-slides, and protected cable runs. Instead, ask not “how heavy is the torch?” but “what maximum installed and moving package exists at the maximum working reach?”

Build a Full-Stack Load Ledger

The Full-Stack Load Ledger is a pre-quotation exercise that converts an attractive machine outline into a testable load case. List every item carried by the boom, the location of each item, and the heaviest production configuration. Do not treat a later seam tracker or flux-recovery component as a harmless option; it alters the load, cable path, and access arrangement that the first quotation should cover.

Ledger item Question to answer Why it changes the selection

Welding head and torchWhich process and torch configuration are included?Sets the base boom-end load and access geometry.

Wire/flux equipmentIs it carried on the boom, trolley, or floor?Can materially change moving mass and hose routing.

Cross-slide, camera, trackerWhat adjustment travel and protection are required?Creates offset load and defines usable seam access.

Cables and hosesWhat bends, supports, and travel length are required?Prevents snagging and unplanned drag during a pass.

Service platform or toolsAre they permanently mounted or temporary?Changes the maximum load case and safety boundary.

Future process optionWill the head package change within the machine’s life?Shows whether the initial choice leaves useful margin.

Request the supplier’s calculation for the full ledger, not simply a statement that the nominal rating is high enough. Supplier calculations should identify the boom extension at which the load applies and which accessories were included. During factory acceptance, use a comparable package or documented equivalent. That is more meaningful than watching an unloaded boom move smoothly across a showroom floor.

Map reach, lift, and travel as separate conditions

Reach, lift, and travel are often grouped together in casual conversation, but they answer different engineering questions. Reach asks whether the head can get from the column to the required joint line. Lift asks whether it can reach the required elevation with service clearance above and below the part. Travel asks whether it can follow the seam length at the planned process speed without losing cable control or entering a collision zone. Even a polished proposal can pass one test and fail another.

Build a simple seam map from the longest and most awkward representative workpiece. Mark the joint start and finish, the furthest and closest torch position, the highest and lowest working point, clamps/nozzles/manways that obstruct access, and the loading side. Add the position of the rotator, positioner, or fixed work support. This map needs no elaborate software to expose a bad assumption; a scaled drawing and a test with the real head package are often more revealing than an idealised render.

For example, a manipulator may reach a longitudinal shell seam perfectly but have no practical clearance to place the head inside a vessel or around a nozzle. Choosing a different boom length may solve the reach problem while making the assembly unnecessarily flexible or consuming floor space. Ultimately, selection is a work-envelope decision, not a race for the largest dimension on a data sheet.

Match the head motion to workpiece motion

Once the load envelope is credible, define what the workpiece does during welding. Long cylindrical shells normally need controlled rotation on a rotator while the boom holds or travels the head. Clamped assemblies may need a positioner to alter their angle. By contrast, a stationary structural seam may need only boom travel. Selection should follow this motion pairing, because the choice changes torch orientation, grounding, clearance, and the production recovery method.

That pairing is where a buyer can look for controlled access to long seam welds without pretending that one product is a universal solution. Aubrik’s product description explicitly frames manipulators alongside rotators and positioners. Each useful quotation should state which equipment moves the head, which equipment moves the workpiece, whether the motions are independent or coordinated, and what happens during stop, restart, wire change, or an out-of-position condition.

Process selection belongs in the same conversation. SAW, MIG/MAG, and TIG impose different head packages, consumables, heat-input practices, and access requirements. Although a manipulator gives controlled movement, it does not choose the WPS or make a poor joint fit-up acceptable. For pressure work, ASME BPVC Section IX addresses qualification of welding procedures and personnel in conjunction with the relevant construction code. Suppliers should make the motion repeatable, while the fabricator retains responsibility for qualified procedures and execution.

Witness the envelope before accepting the machine

Sound acceptance plans reproduce the hardest credible operating case rather than the easiest demonstration. Each plan should specify a representative head package, the maximum expected boom extension, the required vertical position, the programmed travel range, and the working clearance around a representative weldment or gauge. Rather than chase a marketing speed, test whether the head can arrive, travel, stop, restart, and retract without unacceptable vibration, collision risk, cable interference, or manual improvisation.

Do not accept the easy case. During the witness run, ask the team to move the complete head package to the maximum operating extension, perform a normal start and stop, route every live cable and hose through the intended travel path, then demonstrate how an operator manages the same setup after a planned interruption without changing the fixture or improvising a clearance workaround.

Ask the supplier to show how the travel axis, lift, boom traverse, head adjustment, process controls, and workpiece-motion interface are commissioned. Ask who owns the interface to a rotator or positioner. Ask how emergency stopping affects the moving head and rotating work. Ask what documentation and training are included. Aubrik states that its machines can be configured with power source, seam tracking, and flux systems; that is useful only if the final scope identifies which configuration is actually supplied and tested.

Record the acceptance result as a set of observations: installed package, extension, seam location, travel condition, process mock-up, utility condition, and any change needed. This makes later disputes less likely and creates an honest baseline for maintenance and future upgrades.

Limits that should stay in the request for quotation

For small, frequently changing assemblies, a column-and-boom system is not always the right answer. Such a system can be too large or too inflexible; a positioner, fixture, or manual-assisted station may be more useful. Nor can it solve irregular fit-up, a wrong welding procedure, inaccessible joints, unstable floor foundations, or poor material handling. Value rises when the part family and head package are stable enough to use controlled motion.

Keep the limitation section of the request for quotation explicit. Include the maximum complete head package, maximum and minimum reach, lift range, seam travel, workpiece-motion partner, process options, utility requirements, environmental conditions, safety functions, commissioning evidence, spare-parts plan, and the circumstances that require a new engineering review. If a future SAW package is only a possibility, state it as a future condition rather than silently assuming a MIG/TIG configuration has enough margin.

Compared with selecting a large machine from a photograph, the resulting purchase decision is less dramatic but more useful. Such a manipulator earns its place when the complete boom-end package can access the real seam through a controlled path, in cooperation with the correct workpiece-motion equipment and a qualified welding process. That is an envelope a shop can measure, witness, and operate—not a capacity claim it has to hope will be true.
